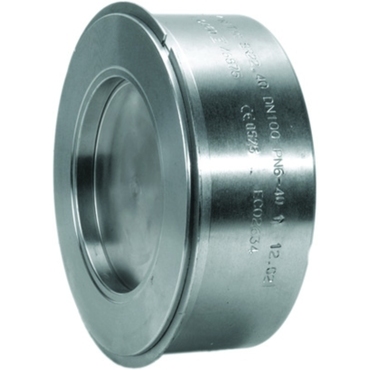

RITAG Inklem terugslagklep Type: 2634 Staal Wafer type PN40

Product Documentatie

Document	Soort bestand
Product Manual	Installation Operation Manual (PDF)
Productoverzicht	Download

Toon alle artikelen

Toepassingsgebied

Koud- en warmwater, olie, lucht, gassen en corrosieve media.

Bijzonderheden

Geschikt voor horizontale en verticale (stijgende stroming) montage.
Laag gewicht.

Tabellen

DN	L	d	d1	D1	D2	Gewicht	Openingsdruk horizontale stroming	Openingsdruk vert. dalende stroming	Openingsdruk vert. stijgende stroming	Openingsdruk vert. stijgende stroming zonder veer
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]	mbar	mbar	mbar	mbar
15	16	51	28	43	15	0.15	20	16	24	4
20	19	61	33	53	20	0.25	20	16	24	4
25	22	71	41.5	64	25	0.3	20	16	24	4
32	28	82	51.5	76	32	0.6	20	16	24	4
40	31.5	92	58.5	86	40	0.8	20	15.5	24.5	4.5
50	40	108	71.5	96	48.5	1.3	20	15	25	5
65	46	127	90	116	63	2	20	14.5	25.5	5.5
80	50	142	110	132	77	2.3	20	13.5	26.5	6.5
100	60	162	126	152	96	3.5	20	13.5	26.5	6.5
125	90	--	161	193	118	8	20	--	34	14
150	106	--	186	218	138	17	20	--	33	13
200	140	--	240	275	194	23	20	--	32	12
Voor DN15-100 geldt D1=PN6 / d=PN10-40 en voor DN125-200 geldt D1=PN6-40

Voorraadartikel

Norm: EN (DIN)

Materiaal huis: Staal

Kwaliteitsklasse

Nom. binnendiameter

Aansluiting: Wafer type

Druktrap artikel: PN40

Druktrap flens: PN6/40

Inbouwlengte (mm)

Klepvorm: Schotel

Afdichting: Roestvaststaal (RVS)

Filters wissen (9 van 9 artikelen getoond)
